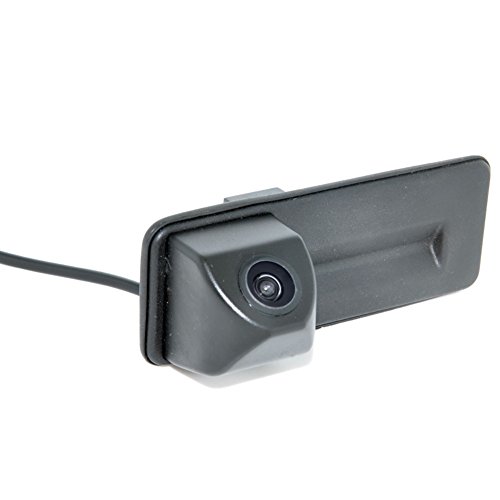

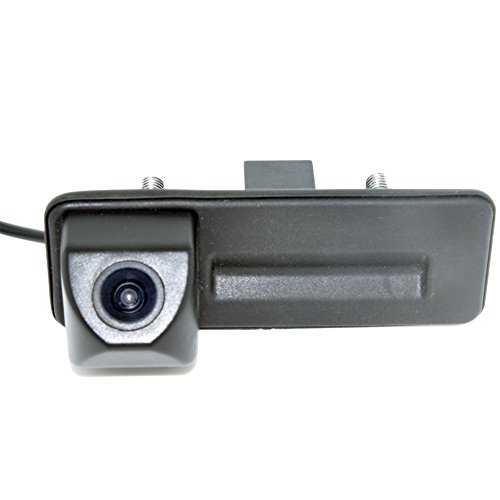

Auto Wayfeng WF® HD CCD Night viosn car trunk handle reverse parking rear view camera For Audi A1 Skoda

All the cameras will be checked before sending to you

Specification:
Image Sensors: 1/4 “CCD color
TV system: NTSC and PAL
Effective pixels: 728 x 512
Resolution: 520 TV lines
Video Output: 1.0Vp-p, 75
Electronic Shutter: 1/60 (NTSC) -1 / 10000s, 1/50 (PAL) -1 / 10000s
Waterproof Grade: IPX 68
Operating temperature: -20 ° C ~ + 80 ° C RH95%
Working Power (DCV): 12
Current consumption: 90 mA max

Setting:
1. Set the camera to your car’s license plate area
2. Adjust the camera lens to its best position.
3. Connect the power wire (red and black) to light power wires of your car.
4. Connect the video (yellow) to the display.

On television Car Rearview Camera System:
Typically, most monitors support both NTSC and PAL TV system. So it does not matter what camera PAL or NTSC system.
However, if you are not sure, please check that your monitor supports NTSC or PAL system. If your monitor supports only NTSC or PAL, please leave us a message that the TV system that you need in one business day after you make the payment. Or we will send the NTSC or PAL system camera at random.

Packing list:
1 * CCD Car Rear View Camera
1 * 6 m video cable
1 * power cable
1 * User Manual
Night Vision
Waterproof
Professional Car Electronic Shop. Quality Assurance.
Size: please see the picture 5.
Different year of car, maybe different size of camera. So before order, please confirm the size. Thank you.
