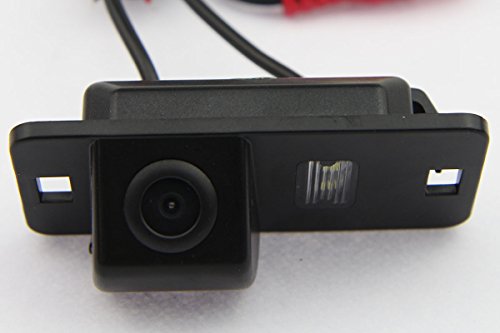

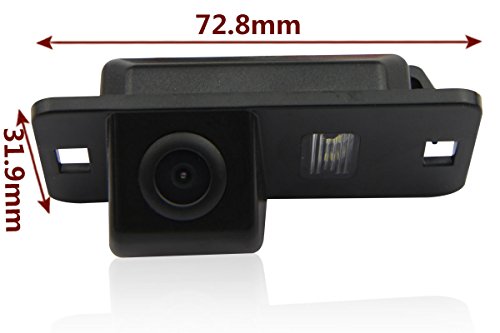

Car Rover Car Rear View Backup CCD Camera for BMW

Description:

Color CCD,PAL/NTSC.
Waterproof and night vision.
Support NTSC video system.
High definition and wide viewing angles.
High sensitivity and low power consumption.
To protect your car from collision with invisible obstacle.
Its simple and modest design and small size won’t draw any attention.
They should be installed at proper position and used with car DVD player,monitor,GPS,parking sensor,etc.

Specification:

Power: 110mA
Waterproof: IP67/IP68
TV system: PAL/NTSC
Lens angle: 135¡ã/170¡ã
Power supply: 12V/24V
Image sensor: Color CCD
Horizontal resolution: 480TVL
Consumption: Max 300mA with IR on
Video output: RCA connector, 1.0vP>P,75Q
Sensing area: 1/3: 4.9*3.7mm,1/4: 3.6*2.7mm
Shutter speed: 1/50(PAL) 1/60(NTSC)- /10000
Effective pixels: 1/3: 500*582 pixels,510*492 pixels;
1/4: 512*582 pixels,512*492 pixels
Operating temperature: -40 – +85 , RH 95% Max
Minimum illumination: 0.1Lux/F=1.2(0Lux with IR on)

Installation:

1.Mount the camera inside the keyhole of your vehicle.
2.Adjust the lens of the camera to its best position.
3.Connect power cord to connect to your vehicle DC 12V power system.
4.Connect the video output(yellow) of the camera to the display in your vehicle.

Package Included:

1 X Video Cable
1 X Power Cable
1 X English User Manual
1 X Car Rear View Camera
Compatible with:BMW 1 Series, E82, 3 Series, E90, E91, 5 Series, E39, E53, X3, X5, X6
The special rear view camera is exchanged with the original number plate light and is visually a perfect fit for your vehicle;
For more safety when parking or reversing. Have everything in view!
170 degree detection angle provide a complete general view of what is happening behind the vehicle;
backlight compensation and low-light amplification provides a clear picture even in poor lighting situations;
