MAG 322 Original Infomir & HB-DIGITAL IPTV SET TOP BOX Multimedia Player Internet TV IP Receiver

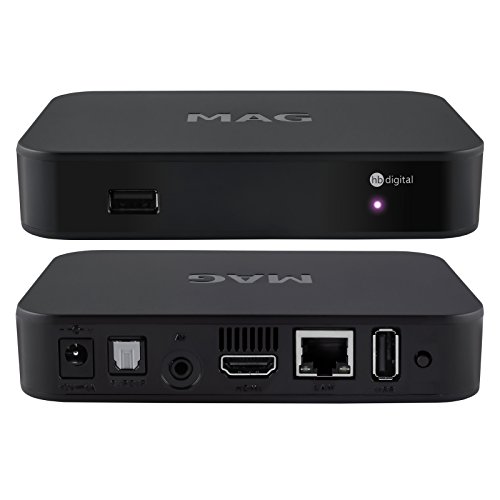

IPTV SET-TOP BOX MAG322

MAG322 – a high-performance set-top box with a new Broadcom chipset and support for HEVC (H.265) encryption and OpenGL. With advanced features, the MAG322 lets you stream HD video, including FullHD video, and enjoy demanding applications.

You can connect removable media and other accessories to the USB 2.0 port.

Technical specifications
Processor: MIPS 4KE Dual Core CPU
Chipset: BCM75839
RAM-memory: 512 Mb
operating system: Linux 3.3

Integrated media portal with IPTV function based on WebKit HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
Supported middleware: Stalker ATTENTION!!! Your IPTV provider must support Salker 5.2 or higher.
OpenGL: ES 2.0/1.1/1.0

External interfaces
HDMI 1.4b output, optical audio output S/PDIF, composite + stereo A/V, Ethernet output 100 Mbps, 2x USB 2.0

Media sources
PC and NAS in the local network
streaming protocols (RTSP, RTP, UDP, http)
USB devices

Audio and Video
Audio coding: MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), MPEG-4
Audio-Format: MP3, MPA, M4A, OGG, WAV, AAC
Video mode: 1080i, 1080p, 720p, 576p, 480p, PAL, NTSC
video coding: H.265 (HEVC support), MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), VC1 video, XviD; 3D and HD video support (40 Mbps and more)
Video-Container: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
image format: JPEG, PNG, BMP, GIF, RAW
subtitle: DVB, SRT, text MKV
Playlist-Format: M3U

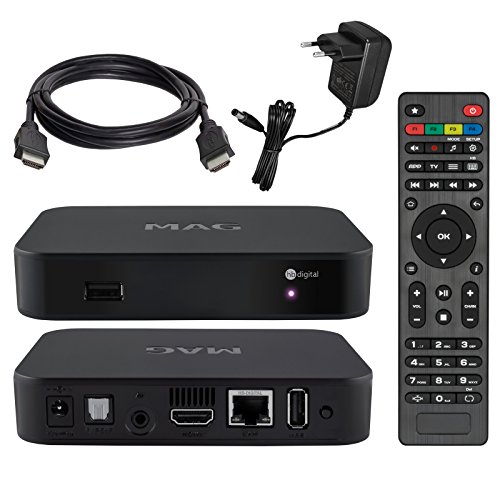

Package Contents
Set-Top-Box MAG322, Remote control, Two batteries (AAA cell), AC adapter, Quick start guide, HDMI cable
ATTENTION: Currently no WLAN sticks are supported. If you need WLAN, order the W1 version.
Processor: powerful Broadcom BCM75839 chipset; MIPS 4KE Dual Core CPU Processor; RAM: 512 MB
External Interfaces: Optical Audio Out: S/PDIF, Ethernet 100 Mbps, HDMI 1.4b Out, Composite + Stereo A/V Out, 2x USB 2.0 + HB Digital HDMI Cable
Integrated MediaPortal with the IPTV function based on WebKit. ATTENTION!!! Your IPTV provider must support Salker 5.2 or higher.
Media Content sources: PC and NAS on the local network, stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB devices. There are no IPTV transmitters preinstalled on the device. We can not help with the installation.
