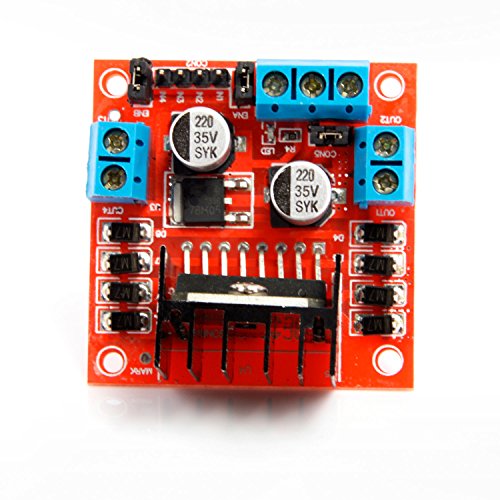

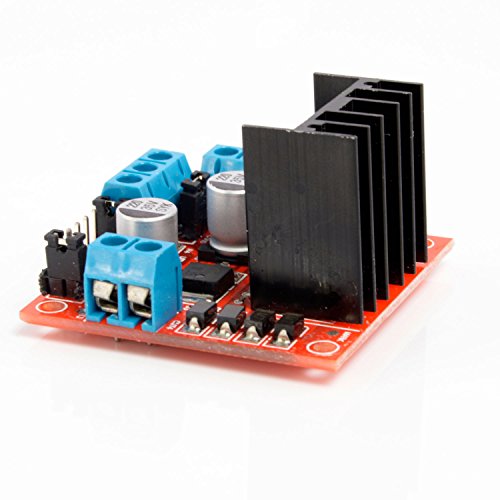

L298N Dual H Bridge DC Stepper Motor Driver Controller Board Module for Arduino
Technical Specification
– Chip: L298N (ST NEW)
– Logic voltage: 5V
– Driving voltage: 5V-35V
– Logic current 0mA-36mA
– Drive current: 2A (MAX single bridge)
– Maximum power: 25W
– Permissible temperature range. -20 ° C to 135 ° C
– Size: about 43 x 43 x 27mm
Feature:
– L298N as main driver chip makes strong driving ability,low heating,strong anti-interference
– Large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
– The output pins have connections with tongs and OUT1, OUT2 and OUT3 of the first motor, OUT4 marked for the second motor
– Ensure sufficient voltage and current for your engine at pins VCC and GND
– This moduel integrated with one internal 5V power supply, meaning when your driving voltage is 7V-35V,it makes 5V of energy board power supply logically; when 5V of energy board power on, please not input voltage to +5V power supply in interface but you can lead 5V voltage for external usage
– Built-78M05, the drive power receiving power, but when the drive power exceeds 12V, please use the power of 5V external power
Delivery:
1 x L298N Moto Driver Module
L298N as main driver chip makes strong driving ability,low heating,strong anti-interference
The module is drived by Dual-channel H-bridge,it can drive two motors simultaneously that creates higher working efficiency
The speed and direction can be easily controlled using arduino
Large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
This module can use built-in 78M05 for electric work via a driving power supply part
