“Phansthy’s wireless reserving camera and monitor kit mainly fit for larger vehicles less than 66 foot in length like trucks, lorries, RVs, trailers, excavators, bus, and vans. Providing you a safe driving journey at day// night is Phansthy’s goal.
Specification :
2.4GHz wireless 7″ LCD TFT monitor
– Screen dimensions: 7inch (16:9)
– Resolution: 800W*RGB * 480H =1152000 Pixels
– Built in wireless 2.4GHz Video receiver
– Reception: 100m open air (Laboratory data), 15m-30m (the actual use environment),
Available for a truck or bus less than 20m in length.
– Compatible system: PAL&NTSC
– Video: two way video inputs (RCA)
– Rear-view: V2 auto reverse when trigger activated
– Power: 12V-24V
– Consumption: <5W
– Operate mode: the key operation and remote control
– Work temp.:-10℃~+40℃
– Storage temp.: -25℃~+80℃

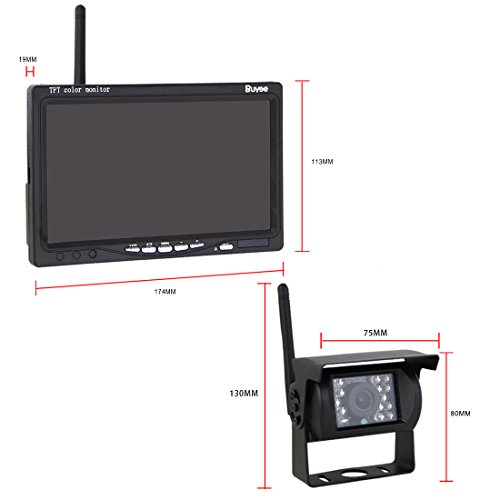

– External dimensions: 174W*113H* 19D (mm)
– Weight: around 415g
– With sunshade

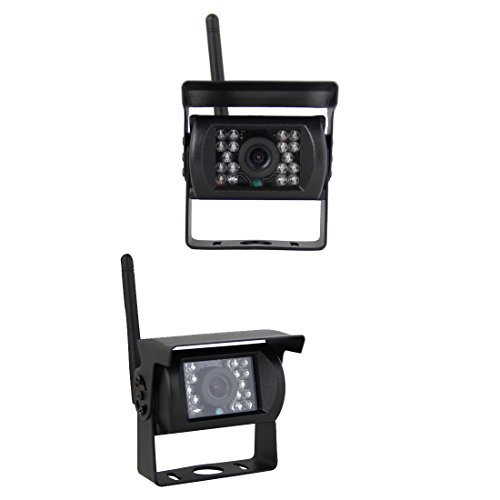

2.4GHz wireless CMOS rearview camera
– Image Sensors: IR color CMOS
– Wireless camera built in 2.4GHz VIDEO Transmitter
– Transmission: 100m open air (Laboratory data) 15m-30m (the actual use environment). Available for a truck or bus less than 20m in length.
– TV System: PAL
– Waterproof rate: IP67
– Effective Pixels: 768 x 494 pixels
– Resolution: 420TV lines
– Minimum illumination: 1.0Lux /F1.2 0.2Lux /F1.2(0Lux IR ON)
– Pin lens: f=2.8mm/F=2.0
– Lens angle :120°, IR LEDs:18 pcs
– Power supply: DC 12V -24V
– Current consumption :≤300mA
– Electronic shutter :1/60~1/10,000 seconds
– Gamma consumption: 0.45
– S/N Ratio: Better than 48Db
– Scanning system: 2.1 interlace
– operating temperature : -20℃~70℃, RH95% MAX
– storage temperature: -40℃~85℃, RH95% MA
Phansthy 7″ LCD TFT backup monitor built in 2.4GHz wireless receiver offers high resolution image and support PAL&NTSC. Rearview IR reserve camera built in 2.4GHz wireless transmitter and 18 IR LED for night vision.
Accepted two video inputs-Video 1 can be used to reserve and Video 2 is capable to watch DVD, VCD, TV, or GPS. 2 cameras can’t be viewed both at the same time.
Car rearview camera with CMOS image sensor use the latest generation of image sensor chip, excellent color effect can provide high resolution 420TVL stable and clear picture. Wide viewing with 120 degree lens angle completely display full color video.
IP67 waterproof grade backup camera with hard metal case effectively keep away from water and mud and help last the backup camera lifetime. Automatically improve light exposure, control brightness and white balance.
Very compact connection, precisely ensure transmission signals and it guarantees reverse images safe, clear and stable, very convenient to take power, simple and easy to install the wireless parking system-No hassle wires connection for your Trucks, Excavators, or RVs.
